SOLAR POWER PLANT · Hybrid Inverter

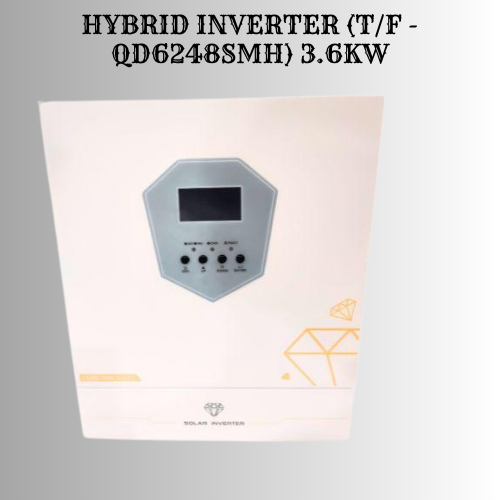

HYBRID INVERTER
Model: ZES-HI-HYB
Base Price₹21,910
GST 18%₹3,944
Final Price (inclusive of all taxes)₹25,854 / pc
3.6KW HYBRID INVERTER (T/F - QD36 24S MH) · specifications
₹21,910
- Model
- Q*3624MHG
- Display
- LCD
- Frequency
- 50/60Hz, Auto Adaptive
- MPPT Range
- 60–450V DC
- Peak Power
- 7200VA
- Key Feature
- 3.6KW Hybrid Solar Inverter – Efficiently manages solar power, battery storage, and utility grid power for uninterrupted energy supply. Pure Sine Wave Output – Provides stable and clean power for sensitive electronics, appliances, computers, and home equipment. Integrated MPPT Solar Charge Controller – Maximizes solar energy harvesting for improved charging efficiency and system performance. Smart Battery Management – Supports battery charging, backup power operation, and optimized energy utilization. Advanced Protection Features – Includes protection against overload, short circuit, over-temperature, battery reverse polarity, and overcharging. Wide Applications – Ideal for homes, offices, shops, solar energy systems, telecom installations, off-grid systems, energy storage projects, and backup power applications.
- Noise Level
- ≤50 dB
- Power Factor
- >0.99
- Communication
- RS485 / RS232
- AC Input Range
- 90–280V AC ±3V (Normal Mode)
- Output Voltage
- 220/230/240V AC ±5%
- PV Input Power
- Max. 5000W
- Battery Voltage
- 24V DC
- Max. PV Voltage
- 500V DC
- Output Waveform
- Pure Sine Wave
- Rated AC Output
- 3600W
- UPS Input Range
- 170–280V AC ±3V
- AC Input Voltage
- 220/230/240V AC
- Output Frequency
- 50/60Hz ±0.1%
- Wi-Fi Monitoring
- Compatible
- BMS Communication
- Supported
- Protection Rating
- IP21 – Indoor Installation
- Operating Humidity
- 20–95% RH, Non-Condensing
- Parallel Operation
- Not Supported
- Storage Temperature
- -15°C to 60°C
- Max. PV Input Current
- 15A
- Operating Temperature
- -10°C to 50°C
- Float Charging Voltage
- 27V DC
- Recommended PV Voltage
- 360–430V DC
- Grid-Tie Output Current
- 15.7A
- Battery Charging Voltage
- 28.2V DC
- Max. AC Charging Current
- 80A
- Max. PV Charging Current
- 100A
- Maximum DC/AC Efficiency
- 98%
- Max. Total Charging Current
- 100A
- Peak Battery-Mode Efficiency
- >94%
- Maximum DC/AC Conversion Efficiency
- 98%
Select variant
1
About this product
Overview and recommended use cases for the HYBRID INVERTER.
48V LiFePO4 battery bank engineered for solar hybrid inverters. Modular design lets you start with 4.8 kWh and scale up. Supports fast charging and grid failover.
Best for: Solar hybrid inverters, small villas, offices
