LED Street Lights · Die-Cast Frame
Frame Die-Cast LED Street Light
Model: ZES-SL-FR
100W · specifications
₹8,500
- wattage
- 100W
- model no
- ZES-SL-FR-100
- pole height
- 8-9 m
LM6/ADC12 die-cast aluminium, passive fin heat sink, ±30° tilt, 100–400W
Select variant
About this product
Overview and recommended use cases for the Frame Die-Cast LED Street Light.
LM6/ADC12 die-cast aluminium housing with passive fin thermal management and powder-coated grey/black finish. Adjustable bracket (±15° to ±30°) fits every pole and holds shape under high heat. Built for heavy-duty highway and expressway installations.
Best for: Highways, expressways, high mast, large industrial zones
CCT
4000K / 5700K / 6500K
Life
50,000+ hours
Mounting
Adjustable ±15° to ±30°
Warranty
3-5 Years
Finishing
Powder Coated Grey/Black
IP Rating
IP66
Efficiency
Up to 150 lm/W
Housing Material
Die-Cast Aluminum (LM6/ADC12)
Surge Protection
10 kV SPD
Thermal Management
Passive Fin Design
More from LED Street Lights
View all
Glass Model LED Street Light
4mm tempered glass, IP66, up to 130 lm/W, 30–200W

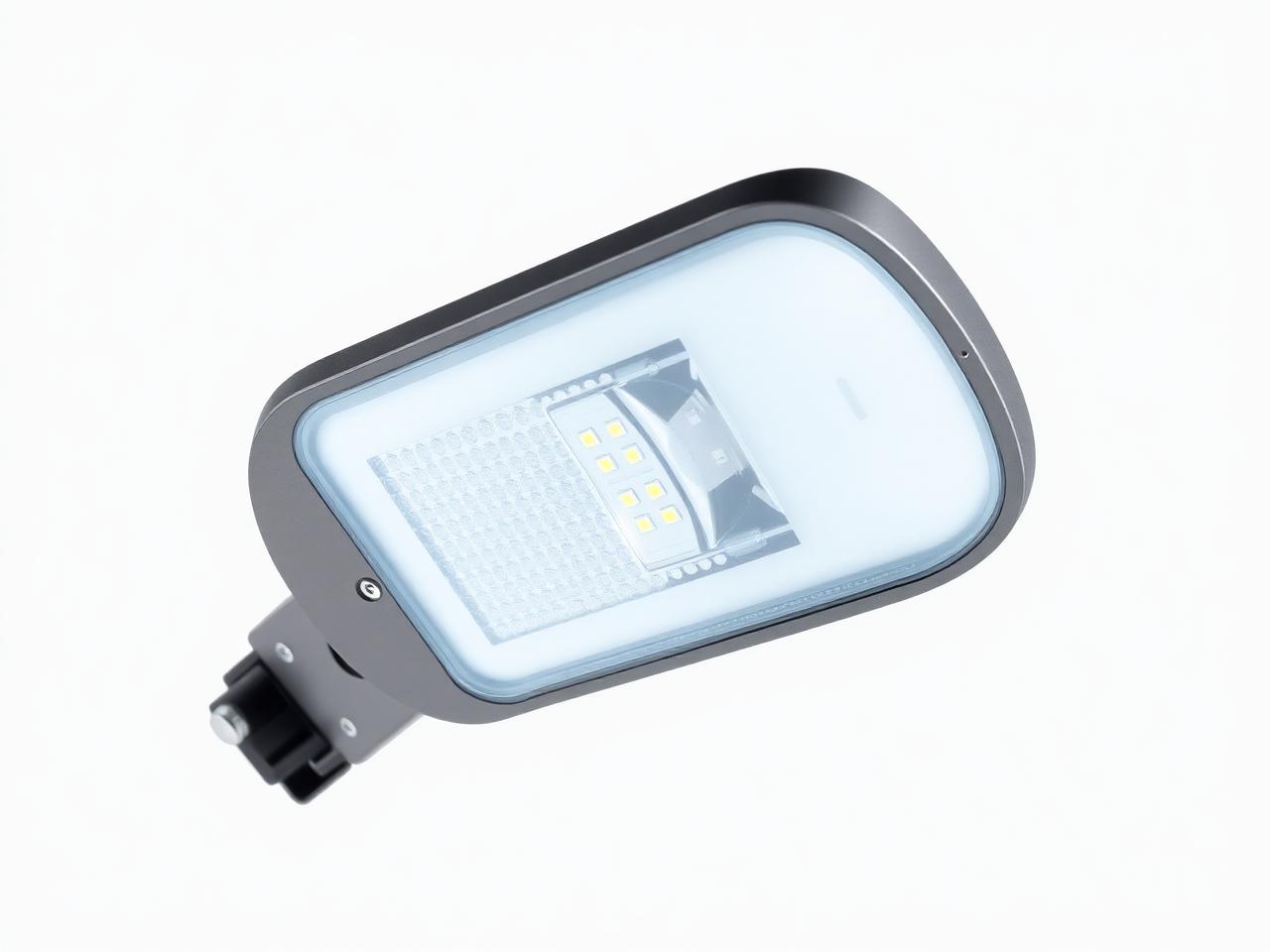

Polycarbonate Lens LED Street Light
